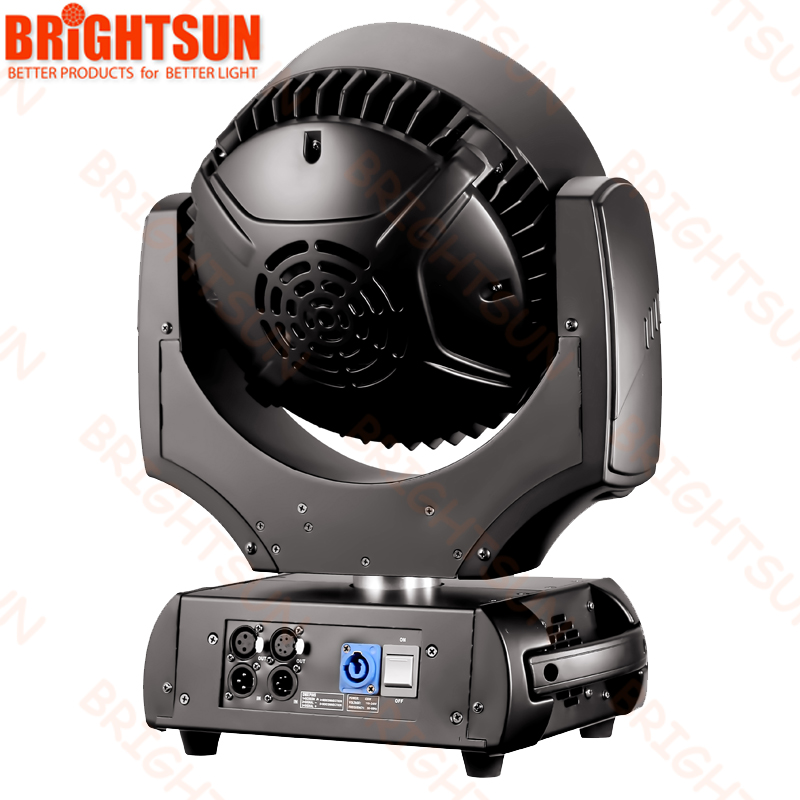

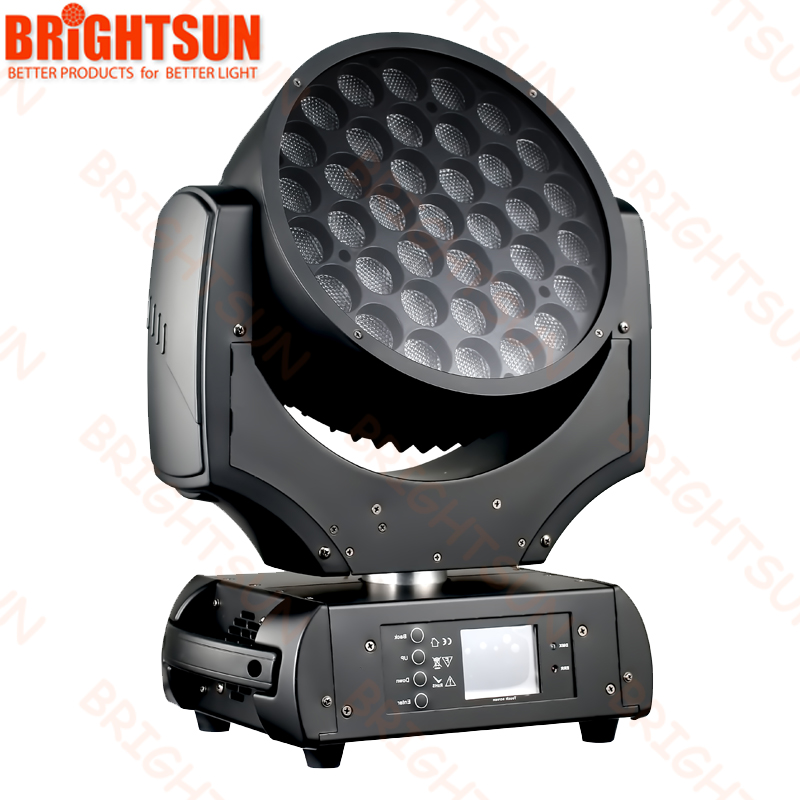

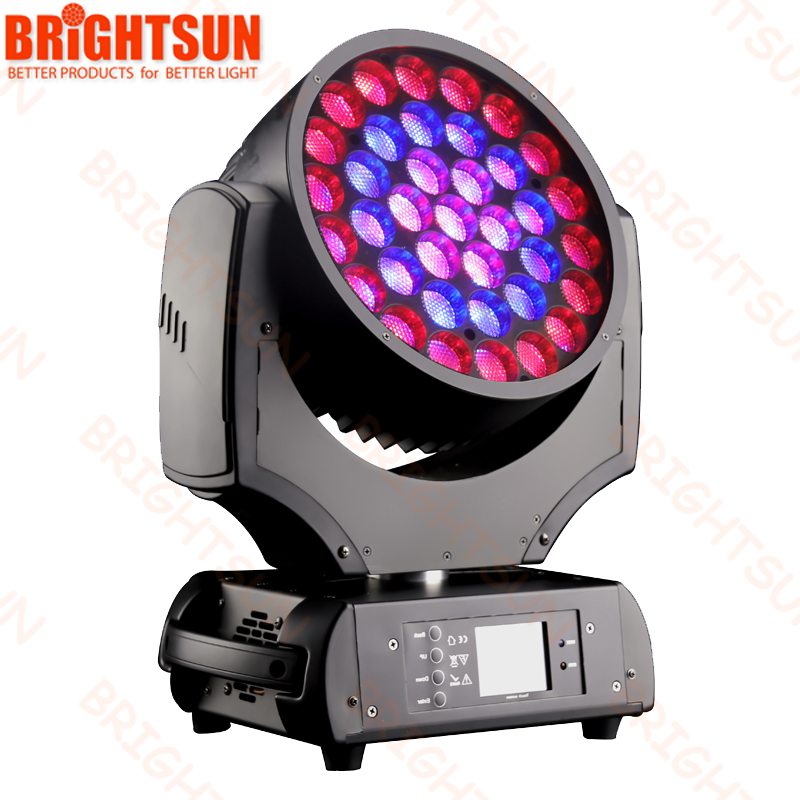

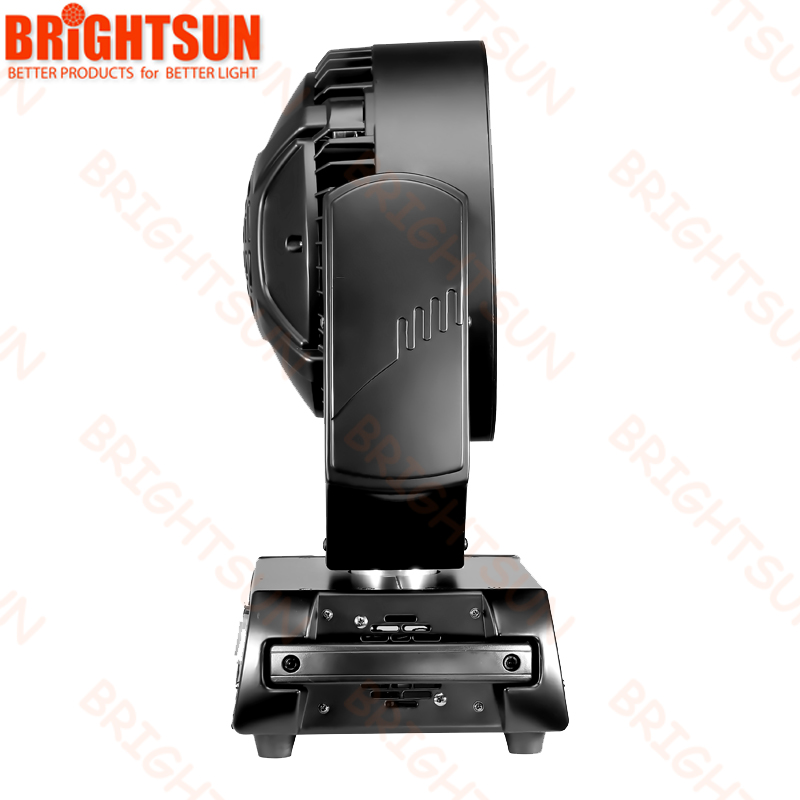

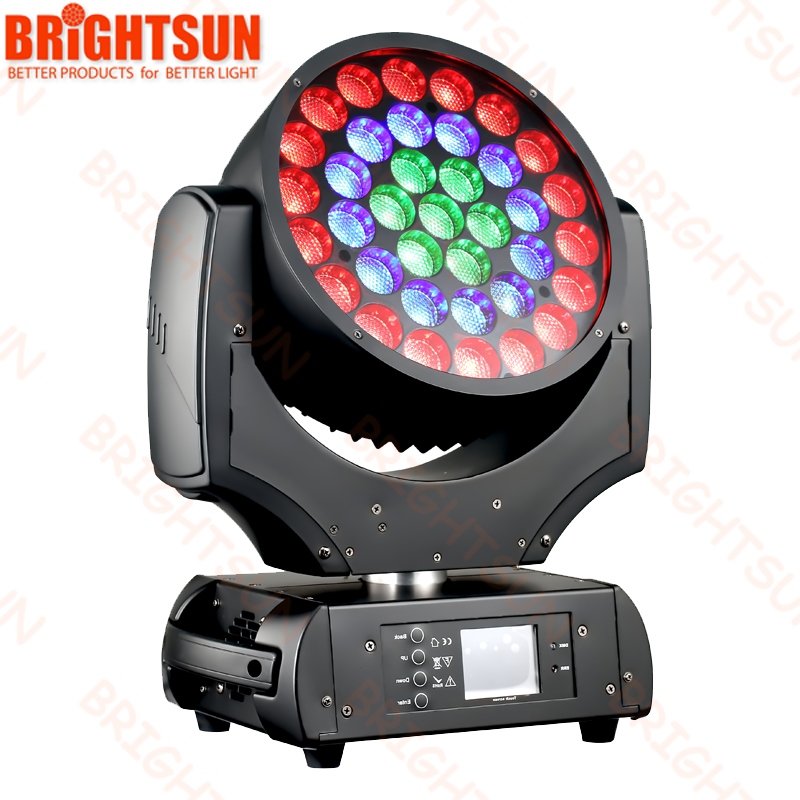

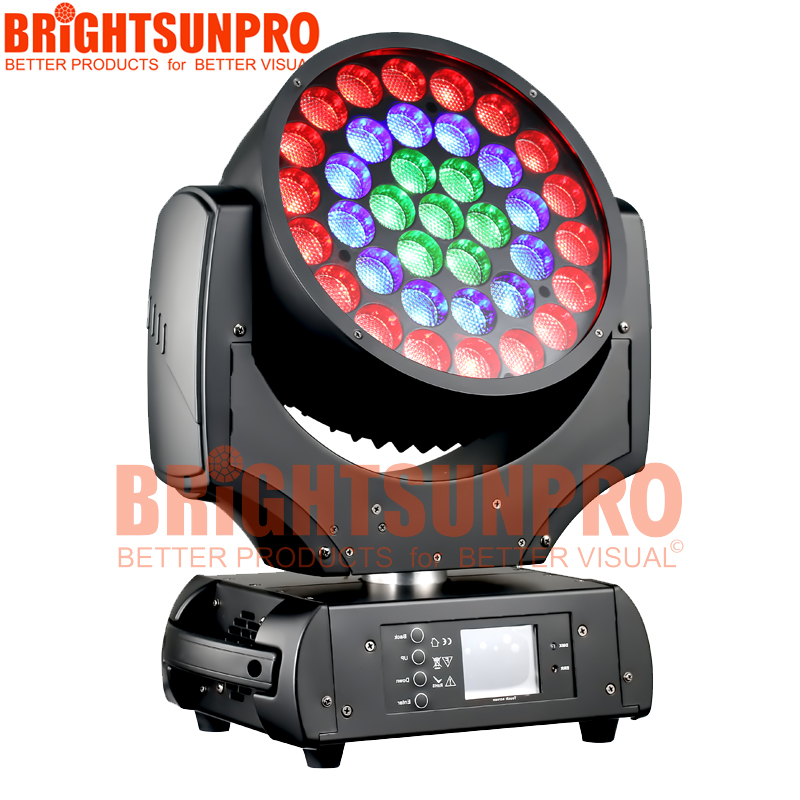

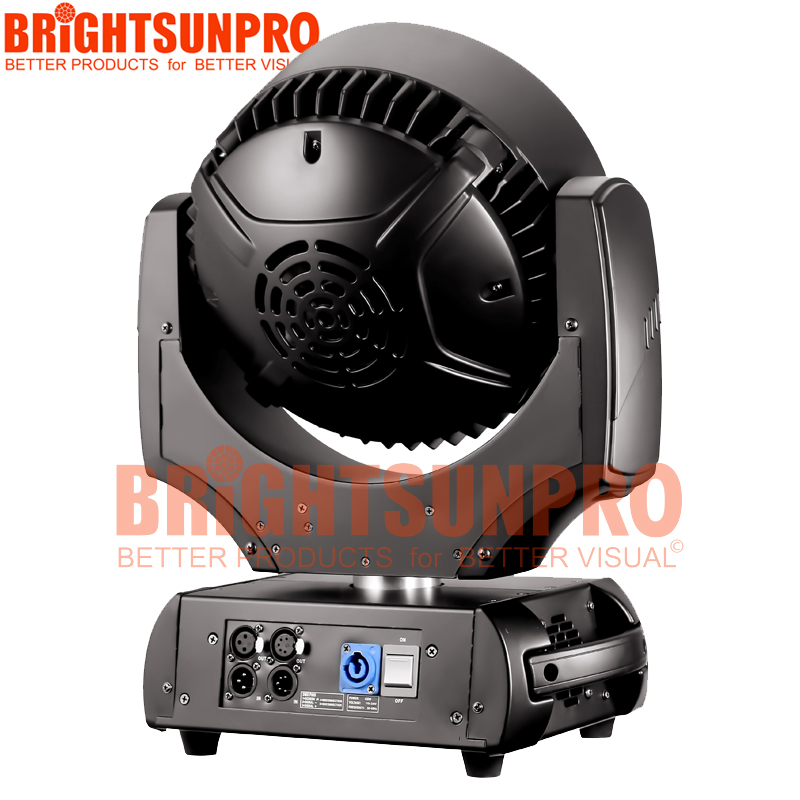

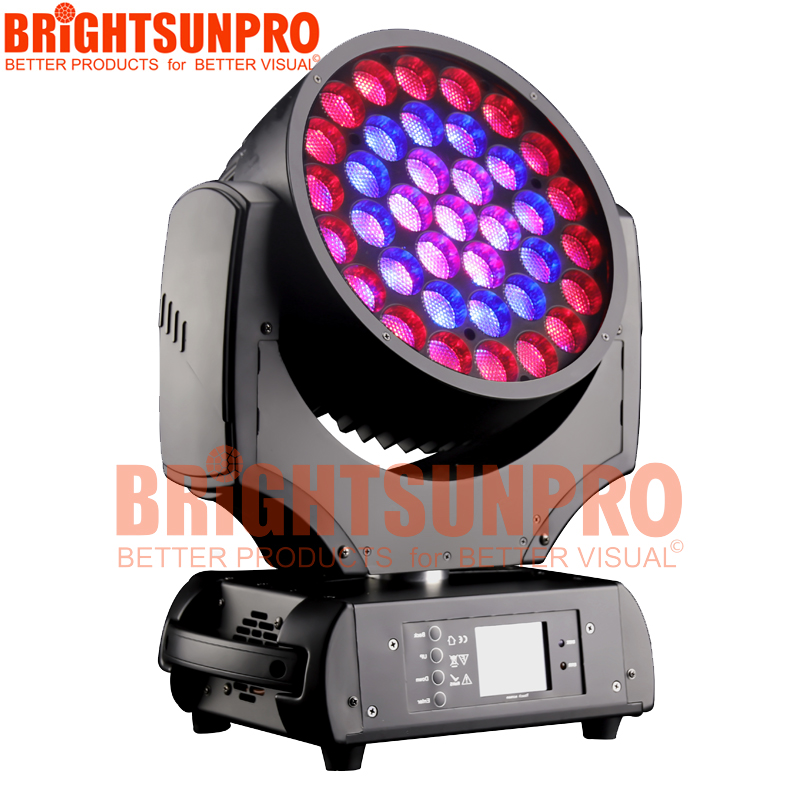

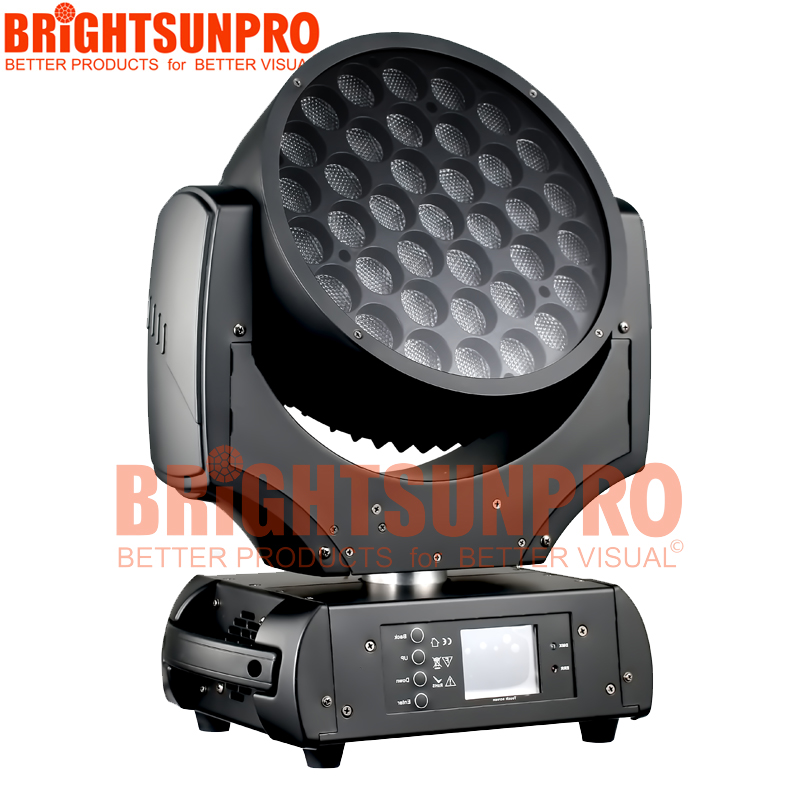

Robin LEDWash 600 37x15W RGBW 4in1 Led Moving Head Light

Electrical
Input voltage range100-240V, 50/60Hz
Fuse: 4 A@230V
Power consumption:430 VA /415W@230V, power factor=0.98

Optic
Light source: 37 RGBW LED multichips
3 zones with individual colour control of each
Typical Lumen Maintenance: 70% @ 60,000 hours
LED life expectancy: 60.000 hours
RGBW colour mixing

Virtual Colour Wheel
Halogen lamp effect at whites 2700K and 3200K
Rainbow effect with in both directions with variable speed
Zone effects in both directions with variable speed

Strobe
All LED zones together:
Strobe effect with variable speed (0.3 - 20Hz)
Random strobe pulse-effect with variable speed
Opening/closing pulse effect with variable speed
Independent strobe effect with variable speed (0.3 - 20Hz) at LED zone 3
Random strobe and random LED zone effect

Dimmer
Smooth dimmer from 0 - 100 %

Zoom
Motorized

Pan/Tilt
Pan movement range: 450°
Tilt movement range: 300°
16 bit movement resolution
Automatic Pan/Tilt position correction
Remotely controllable speed of pan/tilt movement for easy programming
Movement control: tracking and vector
Pan movement 0° - 450° at max. speed: 2.1 sec. (3.4 sec. - Theatre mode)
Tilt movement 0° - 300° at max. speed:1.1 sec. (2.5 sec. - Theatre mode)

Control
Graphic touch screen for fifixture setting and addressing
Gravitation sensor for auto screen positioning
Battery backup of the touch screen
Readout fifixture usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault fifinding, error messages
Built-in demo sequences
Theatre mode for silent pan/tilt and zoom moving
Silent fans cooling
Stand-alone operation
135 DMX modes (37, 21, 15, 10, 11 control channels)
Wireless DMX module (only for Wireless DMX version)
Compliance with USITT DMX-512 and 512-A
Full DMX fifidelity and frame integrity
Auto sensing of DMX frame rate and frame size<5ms DMX latency

Connection

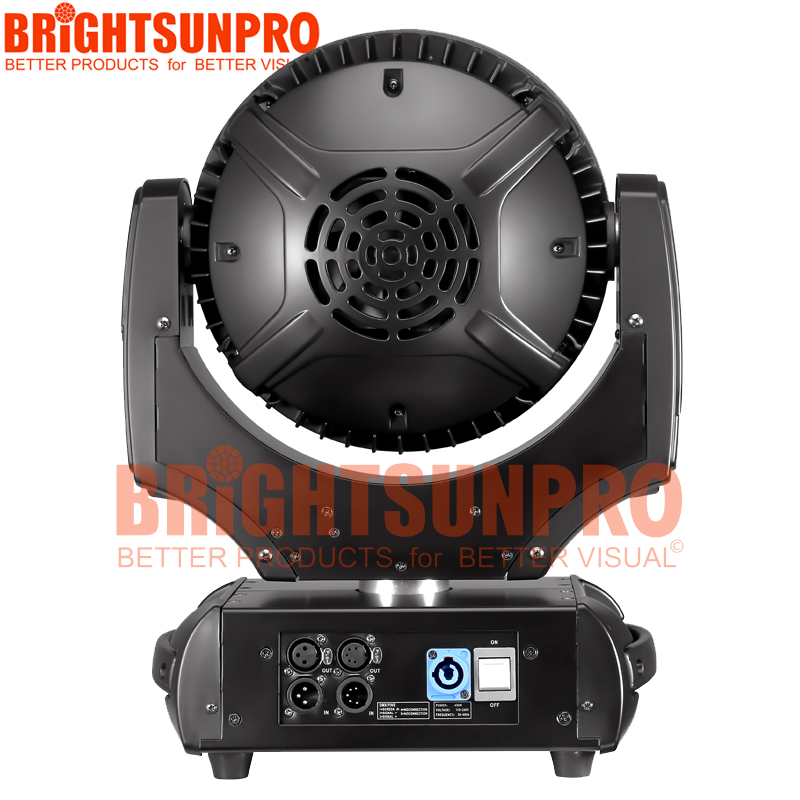

DMX data in/out: Locking 3-pin and 5-pin XLR
AC power input: 1.5 m power cord without plug

Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets

Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 75° C

Minimum Distances
Min. distance from flflammable surfaces: 0.5 m
Min. distance to lighted object: 1.0 m

Total Heat Dissipation
1330 BTU/h (calculated)

Weight (net):10.6 kg
