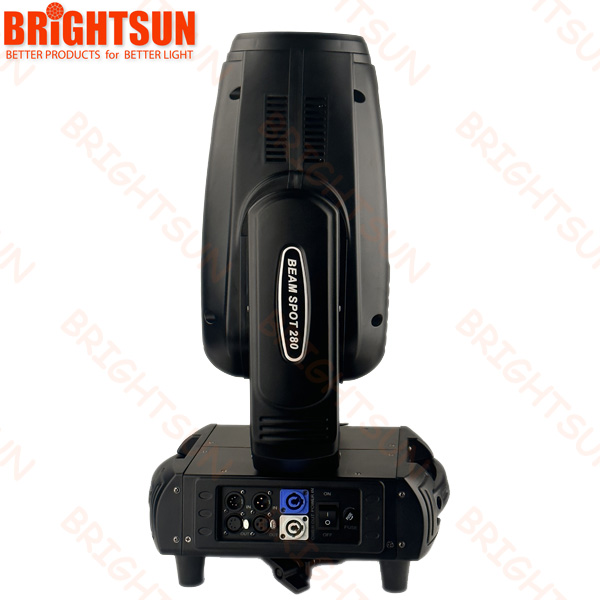

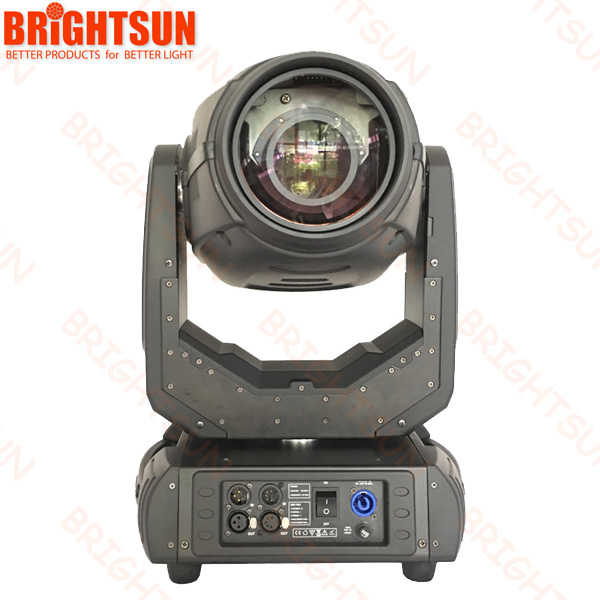

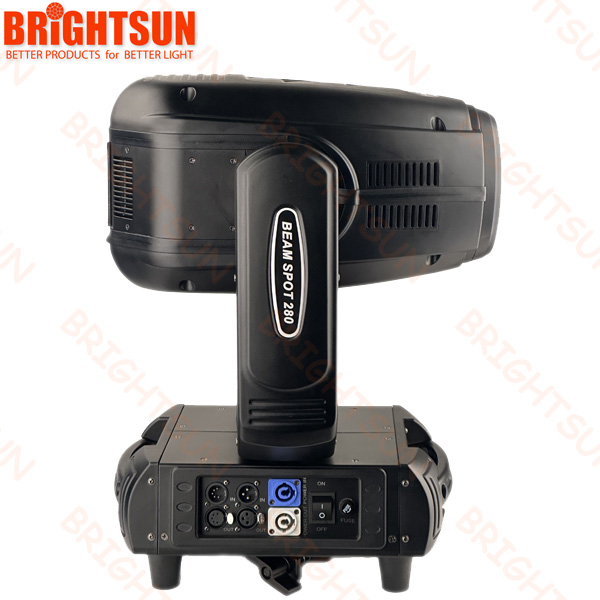

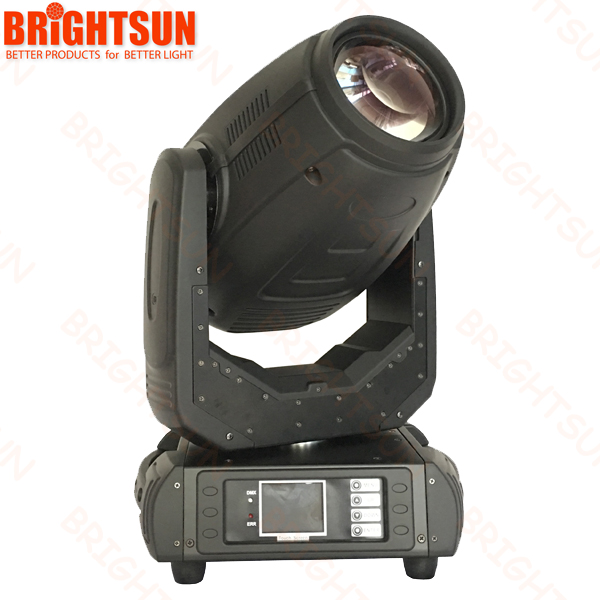

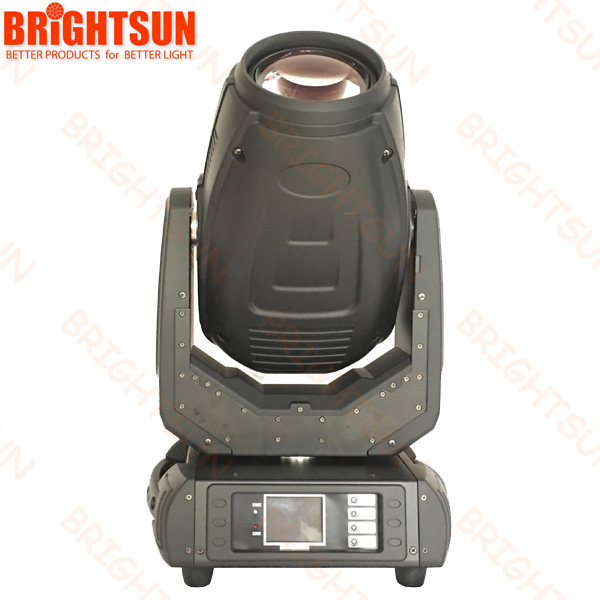

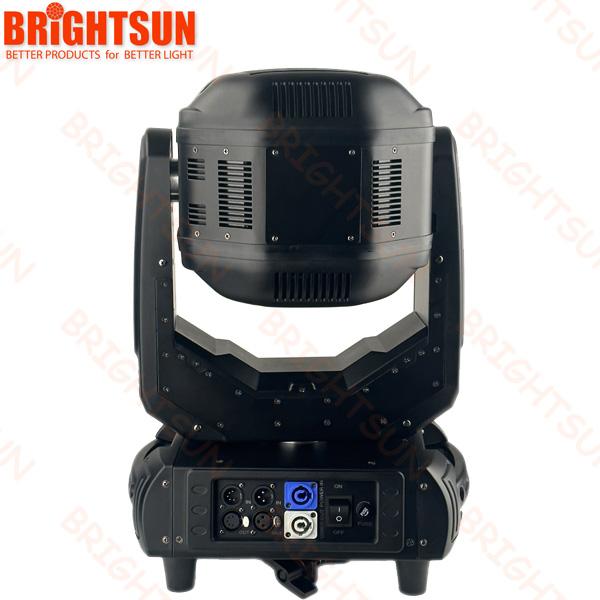

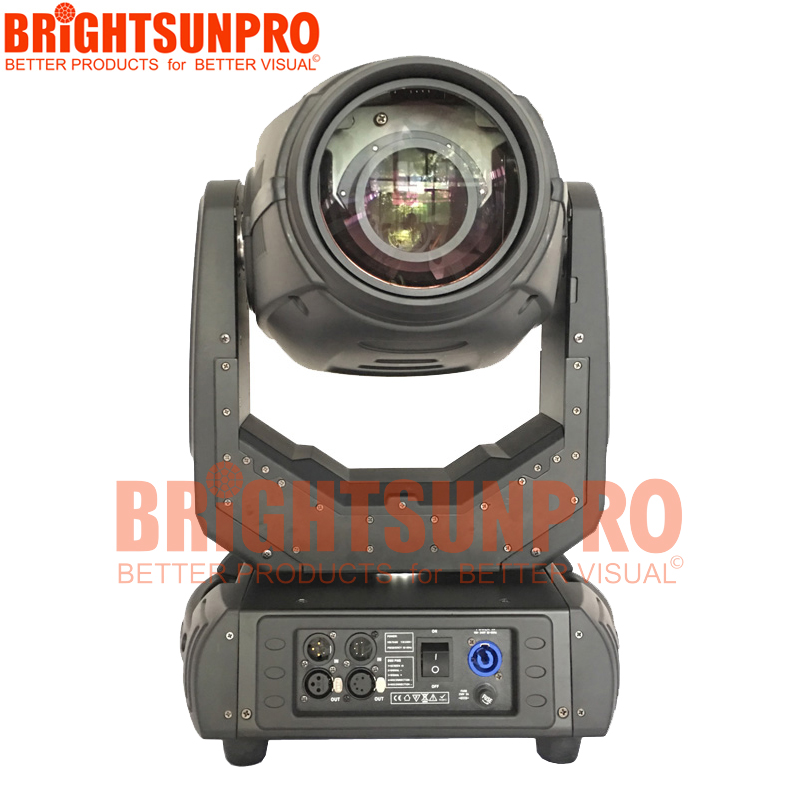

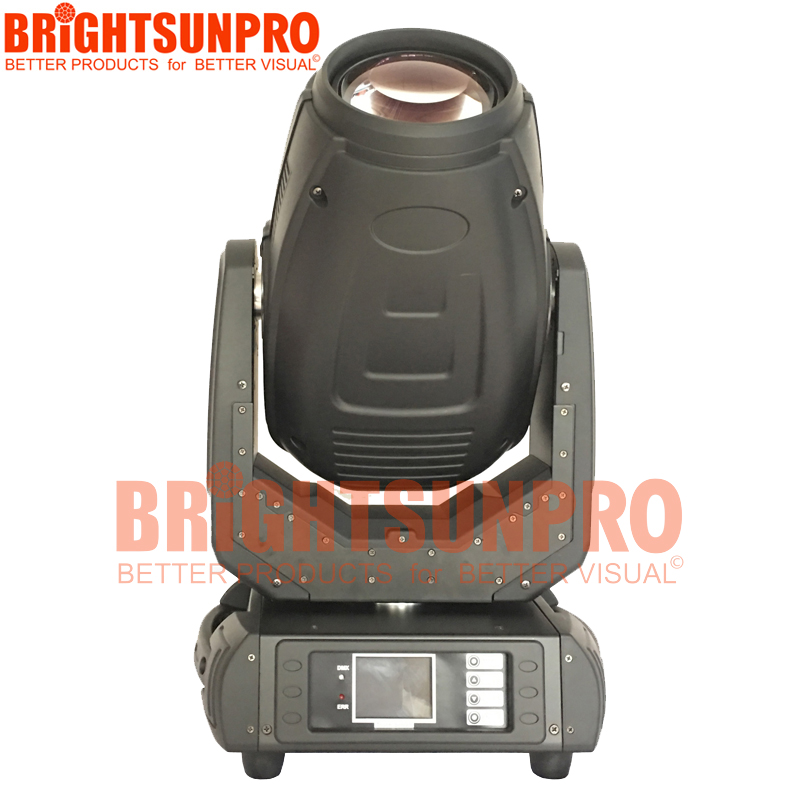

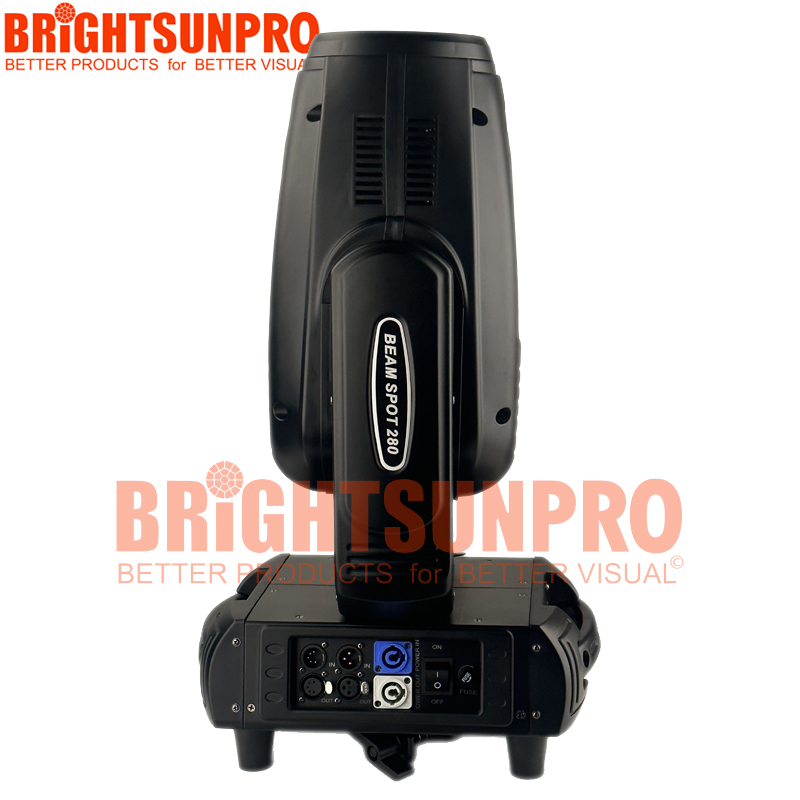

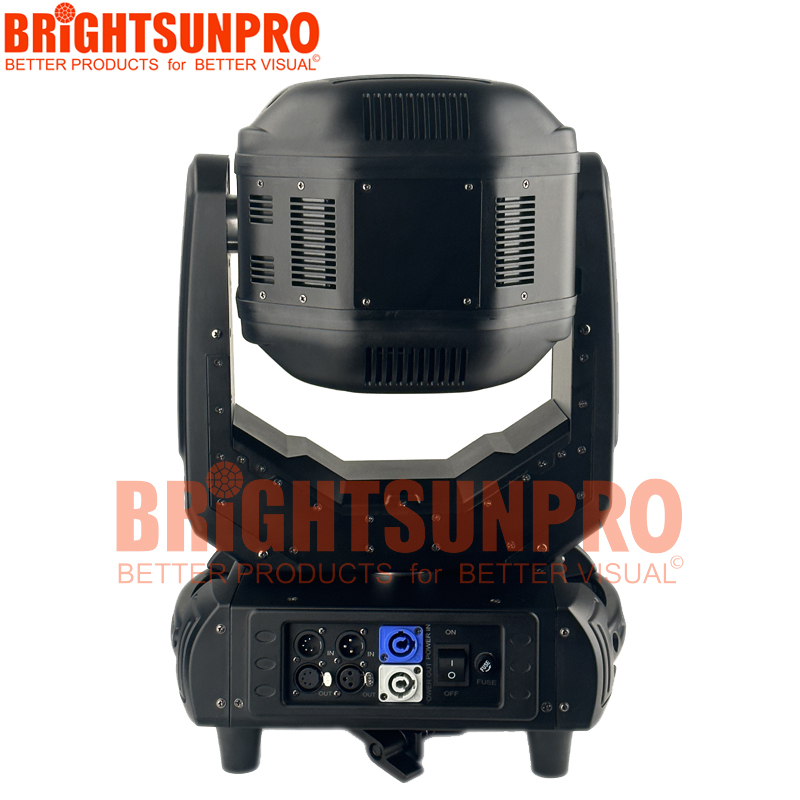

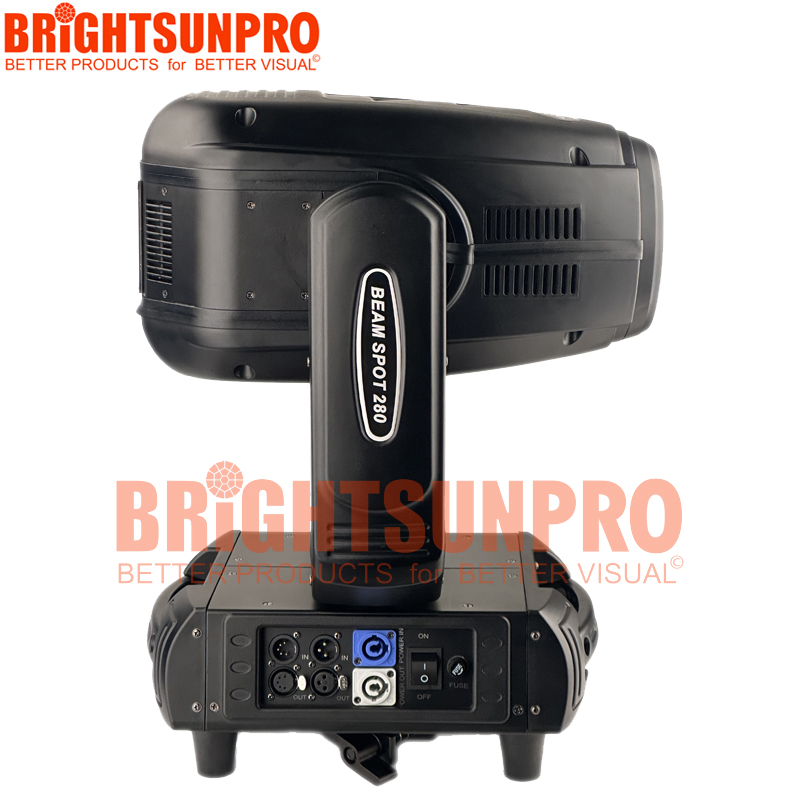

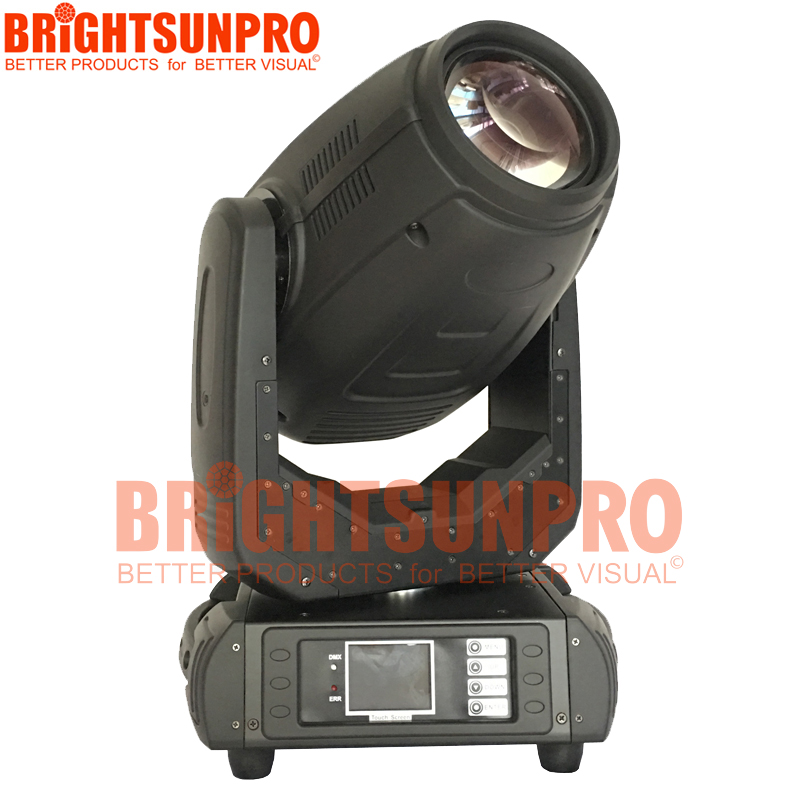

10R 280W Beam Spot Wash 3in1 Moving Head Light
Light Sources: 280W(10R)
Live Fsue:T5 A/250
Neutral Fuse: T5 A/250
Power Voltage: AC 100-240V, 50/60Hz
Max Power Consumption：470W at 230V(I=2.05A,Power factor 0.96)
Typical Power Consumption : 230W at 230V(I=1.8A, Power factor 0.95)
Allow for a deviation of +/-10%

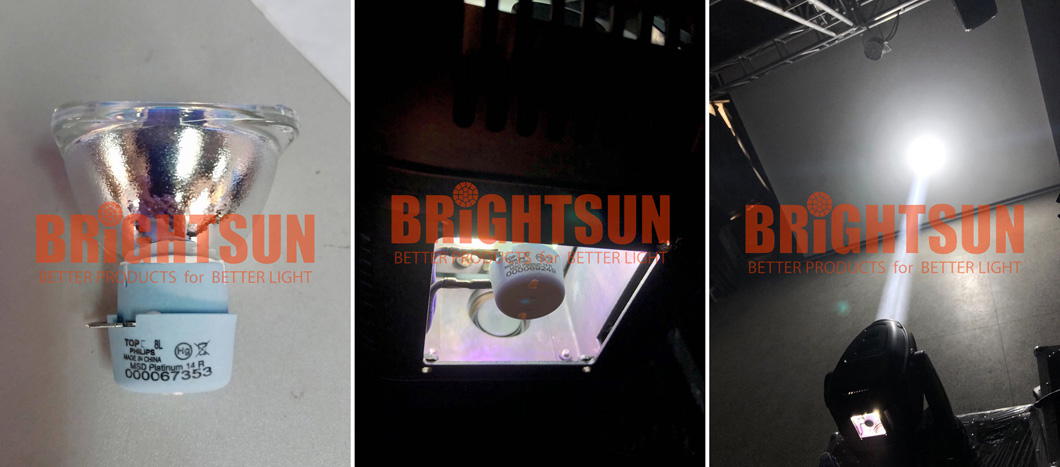

Lamp:
Lamp : Osram 280W
Base Fap2.5
Lamp life : 2000hrs (Stand mode)
3000hrs (Eco mode)
Optical System：
High luminous-efficiency glass reflector
Beam angel : 5°- 20°(spot application)
2.5°- 10°(beam application)

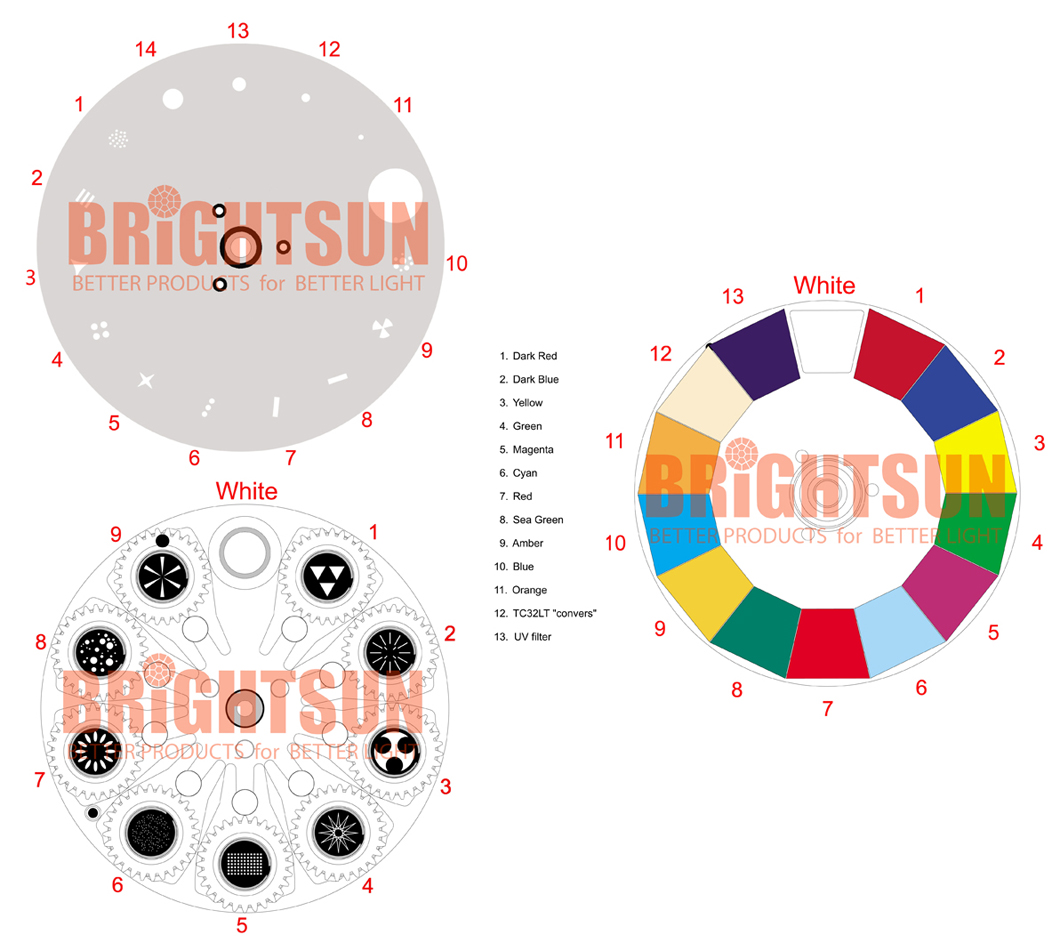

Color Wheel:
one color wheel, 14 kinds of color chips in one color wheel
Static Gob Wheel:
10 metal gobos & 4 beam reducers
Rotation Gob Wheel:
9 Glass gobos can be indexed and rotated in both directions at different speeds
Gobo wheels continuous rotation
Glass gobos: outside diameter=15.9mm, image diameter=12.5mm, thickness=1.1mm
Prisms:
Rotation 8-facet linear prism with continuous rotation in both directions
Rotation 6-facet circular prism with continuous rotation in both directions
Frost filter :
Separate, variable frost filter
Zoom:
Linear motorized zoom
Strobe:
Strobe effect with variable speed (max.15 flashes/sec)
Control

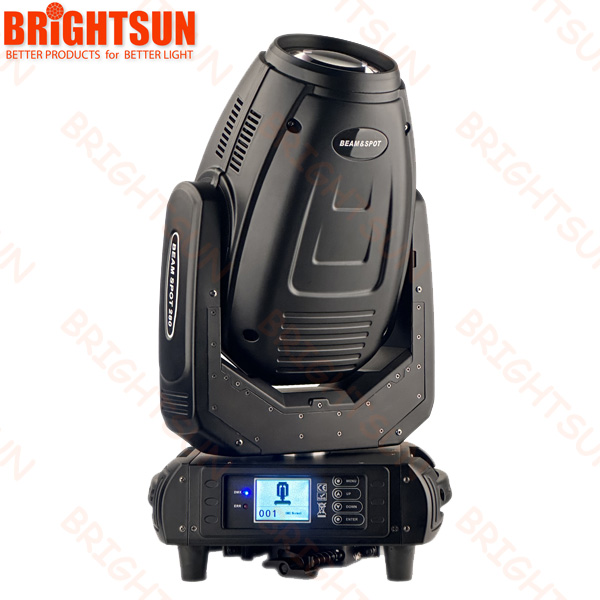

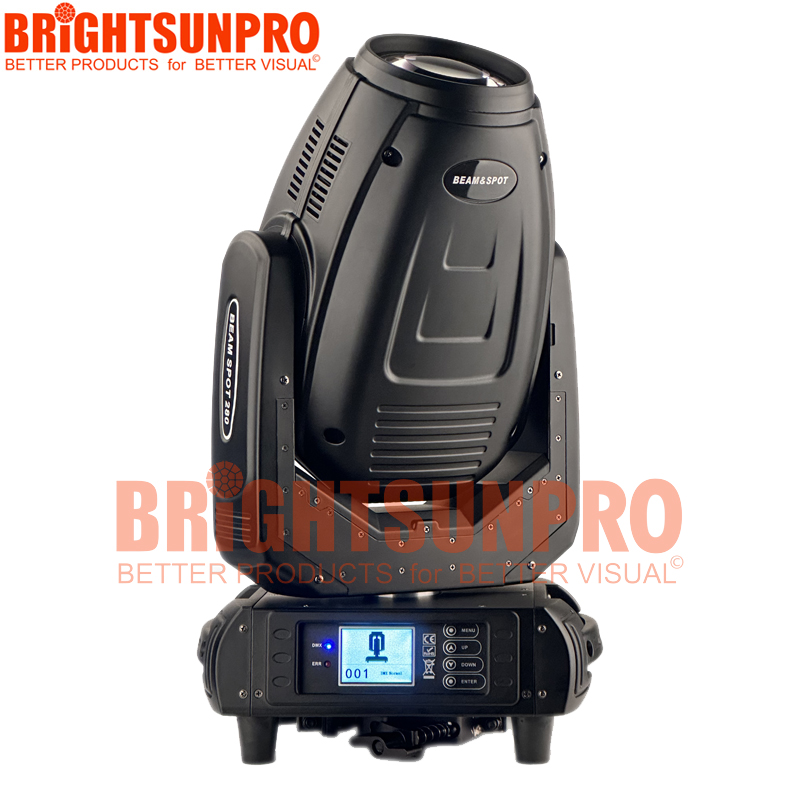

Graphic touch screen for fixture setting and addressing
Gravitation sensor for auto screen positioning
Battery backup of the touch screen
Readout fixture and lamp usage, receiving DMX values, temperatures. Etc
Built-in analyzer for easy fault finding, error messages
Remotely switching on/off the lamp
Built-in demo sequences
Black-out while head moving, color or gobo changing.
Self-resettable thermos-fuse
DMX Channel: 16/24 Channel
Control Modes: DMX
Pan/Tilt
Pan/Tilt: 540°/ 270°
Pan/Tilt Resolution: 16 bit, Electric correction
Movement control: tracking and vector
Pan/Tilt-lock mechanism
Temperatures:
Maximum ambient temperature : 45°
Maximum surface temperature : 90°
Minimum Distances:
Min distance from flammable surface :1m
Min distance to lit objects (Stand Mode-280W):10m
Min distance to lit objects (Eco Mode-230W):7.5m
Total Heat Dissipation:
1600 BTU/h (calculated)
469 Wh (calculated)
